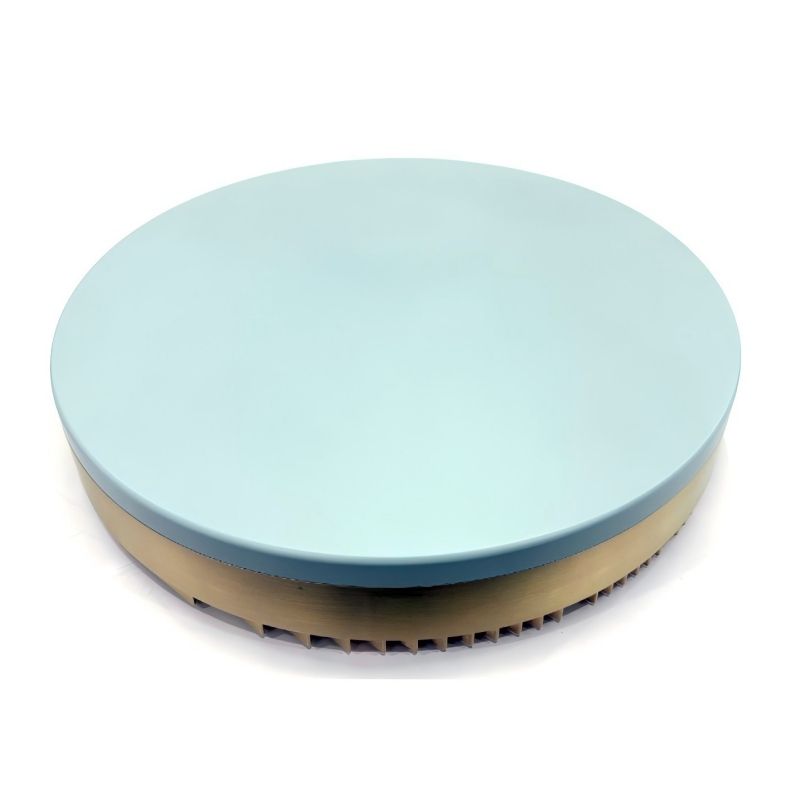

TX2512-AJS-16CH-DPA is an industrial-grade satellitenavigation anti-jamming terminal supporting BDS-B1i andGPS-L1 frequencies. With anti-suppression (up to 15jammers) and anti-spoofing capabilities, it integrates anantenna array and receiver to deliver reliable navigation forUAVs and unmanned vehicles, enhancing PNT securityagainst interference and attacks.
The TX2511-16A-SNB anti-jamming satellite navigation antenna is primarily used in various industrial scenarios for equipment and systems requiring high-precision, high-reliability positioning and navigation.
It is suitable for vehicle positioning, drone navigation, AGV/AMR mobile robots, surveying and mapping equipment, rail transit, and ship navigation, maintaining stable positioning performance even in environments with strong electromagnetic interference, ensuring accurate position acquisition and path control even under complex operating conditions.
| Product model | TX2512-AJS-16CH-DPA |
| Anti-Jamming Capability | Single≥110dBc Seven≥ 95dBc Fifteen ≥80dBc |
| Interference Type | Band-limited Gaussian white noise interference, Spread spectrum matched filter interference, Pulse interference, sweep interference Mixed interference |
| Anti-spoofing performance | Output residual spoofing signal CN0:20dB |
| Output signal frequency | 1561.098MHZ\ 1575.42MHZ |
| RF output power | (-)70~(-)60dBm |
| Out put impedance | 50 ohms |
| Anti-interference air space lorientation | 0~360°，pitch:-90~90° |
| Power Consumption | ≤25w |
| Measurement | Φ370x53mm |
| Weight | ≤3000g |
