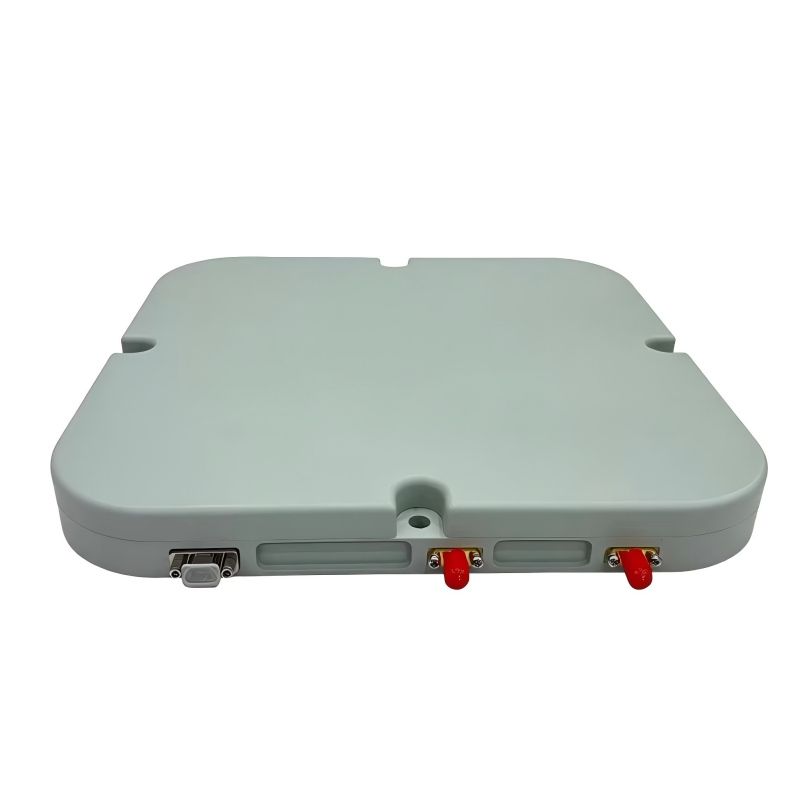

The TX2511-16A-SNB antenna is an anti-jammingsatellite navigation terminal designed for industry users,supporting GPS-L1, GAL-E1, and BDS-B1 frequencieswith anti-jamming capabilities. Each frequency point canwithstand up to 15 jammers simultaneously. Additionally,the antenna incorporates an integrated receiver, offeringhigh integration,high performance, and high precision.
The TX2511-16A-SNB anti-jamming satellite navigation antenna is primarily used in various industrial scenarios for equipment and systems requiring high-precision, high-reliability positioning and navigation.
It is suitable for vehicle positioning, drone navigation, AGV/AMR mobile robots, surveying and mapping equipment, rail transit, and ship navigation, maintaining stable positioning performance even in environments with strong electromagnetic interference, ensuring accurate position acquisition and path control even under complex operating conditions.
| Product model | TX2511-16A-SNB |
| Anti-Jamming Capability | Single≥100dBc Seven≥ 85dBc Fifteen ≥70dBc |
| Interference Type | Band-limited Gaussian white noise interference, Spread spectrum matched filter interference, Pulse interference, sweep interference Mixed interference |
| Output signal frequency | 1561.098MHZ \1575.42MHZ |
| RF output power | (-)70~(-)60dBm |
| Out put impedance | 50 ohms |
| Anti-interference air space lorientation | 0~360°，pitch:-90~90° |
| Power Consumption | ≤25w |
| Measurement | 230x230x24mm |
| Weight | ≤1250g |
