TX-007Pro-8CH-DF-WG-DR Dual Frequency 8-channel Anti-interference

Home Drones and Related Products TX-007Pro-8CH-DF-WG-DR Dual Frequency 8-channel Anti-interference

TX-007Pro-8CH-DF-WG-DR Dual Frequency 8-channel Anti-interference

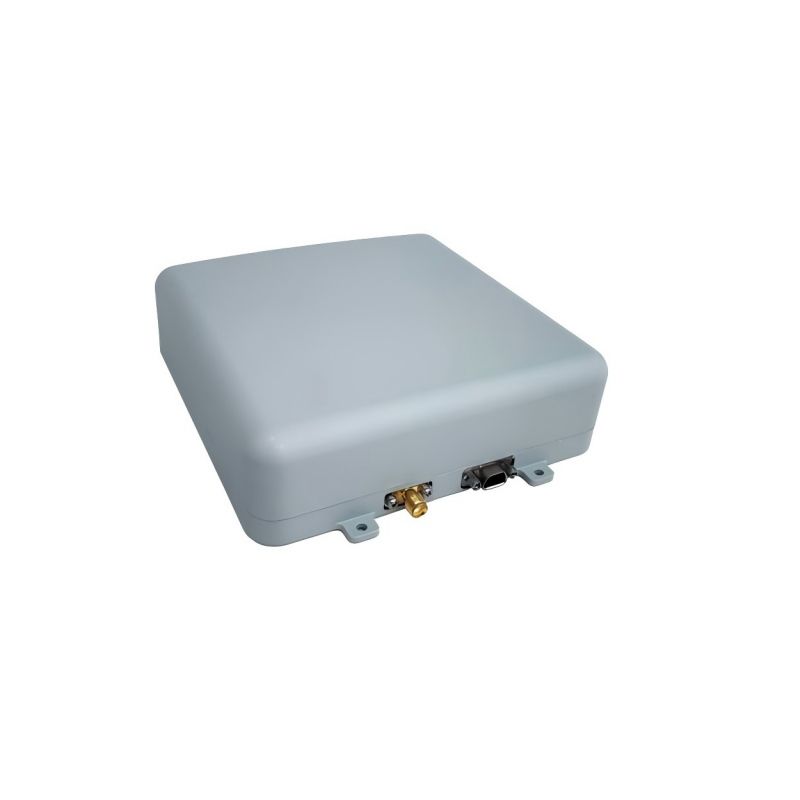

TX-007Pro-8CH-DF-WG-DR is a dual frequency 8-channel anti-interference device that can suppress narrowband interference, broadband interference, pulse interference, sweep interference, Gaussian interference, and other suppression interference.

Drones and Related Products, Anti-interference Components2025-11-28b25

Description

Typical Applications:

1. Timing security in power, communications, and finance sectors

2. Navigation security for drones, unmanned vehicles, and unmanned ships

3. Fleet defense navigation security

4. High-end logistics navigation security

Product model TX-007Pro-8CH-DF-WG-DR
Advantage: Built in full frequency point navigation and positioning module, outputting information according to NMEA0183 protocol
Serial port output or RF port output is available
Equipped with self checking and status inspection functions
Equipped with software upgrade function, software upgrade can be carried out through serial port anti-interference module and receiver module
Burn-resistant function Anti continuous wave power not less than 10W
Security Equipped with overvoltage protection, reverse connection protection, etc.
Operating frequency B3:1268.52MHz±10.23MHz
B1
:1575.42MHz±16.368MHz
Anti-interference performance Single-interference signal-to-interference ratio: ≥95dB;
Triple-interference signal-to-interference ratio: ≥85dB
Positioning accuracy Horizontal ≤ 1.5 meters
Speed ​​measurement accuracy ≤0.2 m/s
Time accuracy ≤100ns
Operating voltage Input voltage 5~17V
Power consumption ≤10W
(Note: B3 or B1 single frequency point anti-interference, power consumption ≤ 10W)
Operating temperature (-)40℃~(+)55℃
Storage temperature (-)55℃~(+)70℃
relative humidity Temperature: 40℃; Humidity: 96%
rain Meets the rain test requirements of GJB150A
External dimensions 130mm×135mm×38mm
Weight ≤400g
Color Light gray
