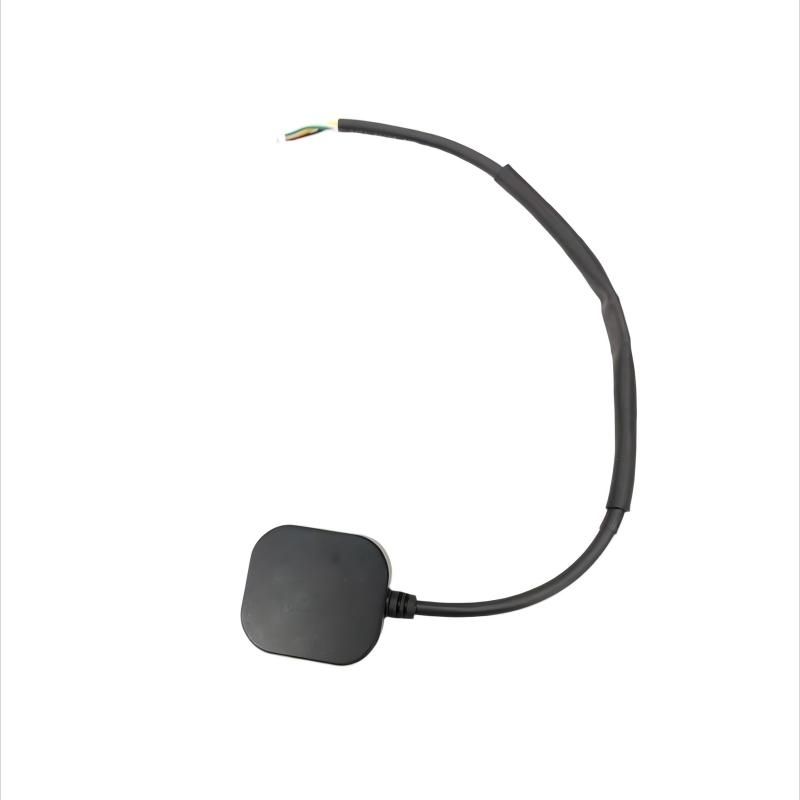

SX003-InfoxDome-ONE-FPV Anti-interference
This product integrates GNSS full-frequency reception with integrated
navigation algorithms to achieve high-precision positioning and anti-jamming
capabilities.
Description
Supporting ASIL B functional safety certification, it effectively addresses challenging environments including satellite signal interference, occlusion, and multipath effects, delivering continuous, real-time, and reliable high-precision positioning results with robust anti-jamming performance.
| Product model | SX003-InfoxDome-ONE-FPV |
| support system | BDS, GPS, GLONASS, Galileo |
| Single point positioning accuracy |
≤2m (1σ, PDP ≤4) (under no interference) ≤5m (1σ, PDP≤4) (under interference) |
| First positioning time | Cold start time: ≤40s; Hot start time: ≤5s; Unlock recapture time: ≤2s. |
| Motion fitness | Speed: ≤500m/s; Acceleration: ≤4g. |
| Timing accuracy | ≤20 ns（RMS） |
| Capacity of resisting disturbance |
65dBc |
| Power dissipation | ≤60mA@5V |
| Joggle | 1 x UART 232 |
| Size | (42±1)x(38±1)x(13±1)mm |
| Weight | 32±1g |
