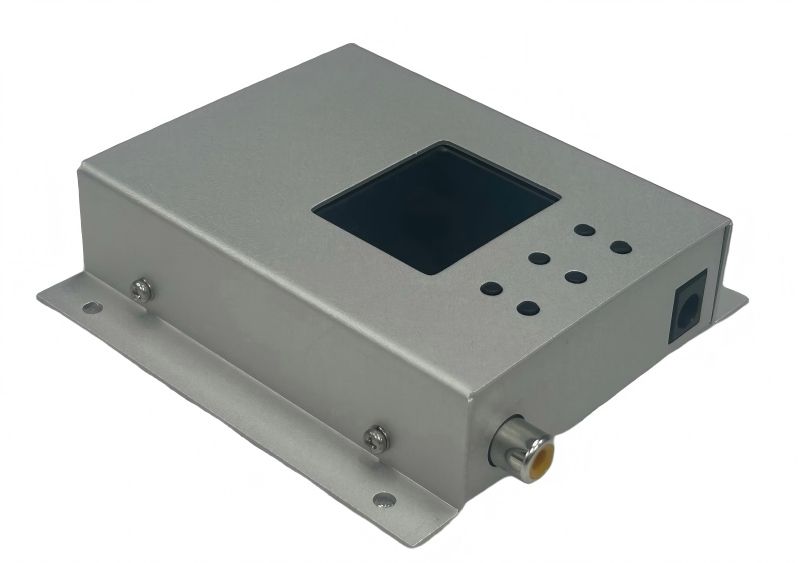

RX-01 Wideband Video Transmission Receiver User Manual
The RX-01 is a professional-grade multi-band analog video signal receiver designed for FPV racing, FPV, drone aerial photography, remote monitoring, and similar applications.
Description
It covering an ultra-wide frequency range of
500MHz-8000MHz, it supports all mainstream analog video transmission protocols (such as NTSC/PAL standards). By automatically selecting the optimal signal, it effectively eliminates snowy or torn images, delivering a stable, smooth, and ultra-low-latency FPV first-person view experience.
Ultra-wide frequency bands: Supports all common and specialized bands including 900MHz, 1.2GHz, 1.3GHz, 2.4GHz, 5.8GHz, and 7GHz.
High sensitivity: Exceptional reception sensitivity ensures stable long-range signal acquisition.
Auto-scan: One-touch scanning detects active video transmission signals within range.
| Receive Mode | Auto Search/Fixed Frequency |
| Receiver sensitivity | -90dBm |
| Receiving distance | 10M～50km |
| Input voltage | 12-28V |
| Power supply interface | DC-005 |
| Antenna Interface | SMA |
| Video Output | Yellow RCA Video Connector |
| Size | 900*920*240mm |
| Weight | 119.5g |
| Video format | NTSC/PAL Auto Detection |
