The Crucial First Step in Corrosion Prevention:
Why Sandblasting is Indispensable for Pipeline Systems
In industrial infrastructure, corrosion is often called the “silent enemy.” It threatens pipeline integrity, increases maintenance costs, and poses significant safety hazards.
Whether you’re transporting crude oil in the Middle East, chemicals in Europe, or natural gas and water in Africa, pipeline durability depends on one critical factor: the quality of the coating. And before any high-performance coating can be applied, a necessary step must be taken—sandblasting.
At Liaocheng Bizqiao International Trade Co., Ltd., we understand that for international clients who need to ship materials globally, especially in the harsh environments of Africa, surface treatment is crucial and cannot be compromised. The following will delve into how we surface-treat pipelines according to the most stringent international standards.
1.”Why”: Sandblasting for Rust Removal
Why is simple wire brushing or power tool cleaning insufficient? Because coating adhesion is a science.
If expensive high-grade epoxy or FBE coatings are applied to poorly treated steel, the coating will fail. It’s that simple.
Manual cleaning (SSPC-SP 2 / SP 3 standards) leaves the following residues:
Soluble salts: Invisible contaminants that cause penetrating blistering under the coating.
Scaling: A dense layer of iron oxide formed during manufacturing. If not removed, the scaling will eventually peel off, taking the coating with it.
Smooth surface: Coatings require a rough surface to adhere.
Sandblasting is the only method that can solve all three problems simultaneously.
2.Technical Principles
We use high-speed compressed air to blast abrasive materials (such as garnet, copper slag, or steel shot) onto the pipe surface.
This process achieves two key objectives:

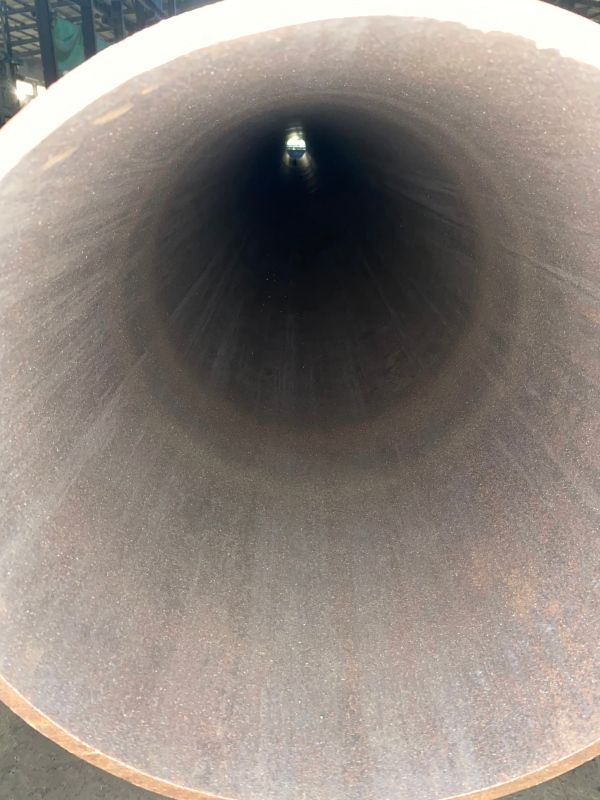

Thorough cleaning: Removes all rust, scaling, old coatings, and contaminants until the original metal color is exposed.

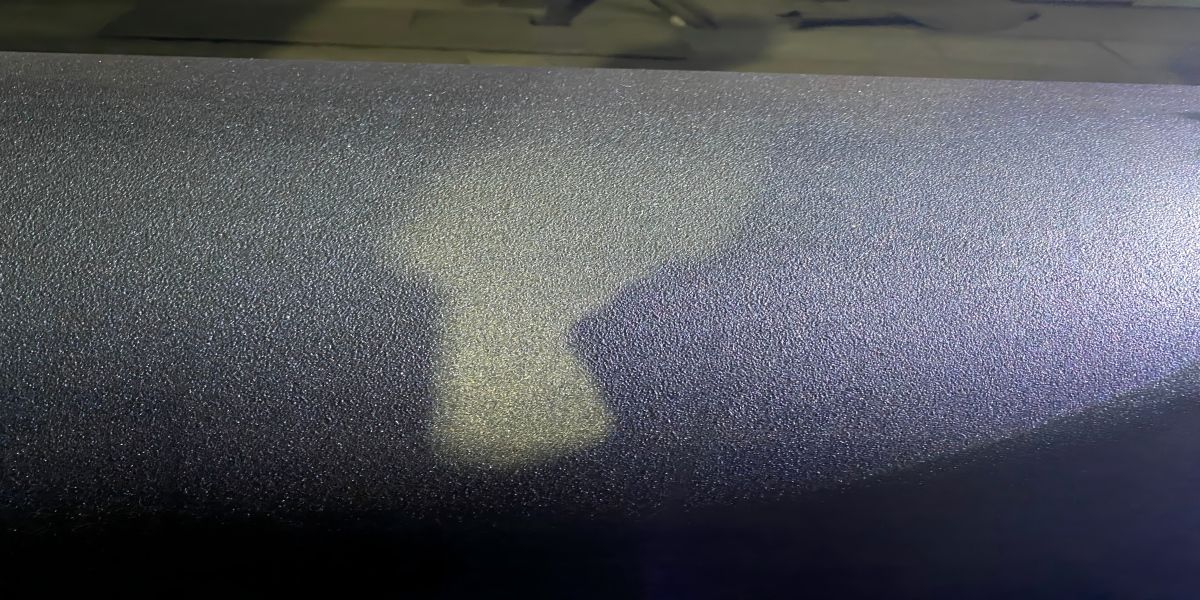

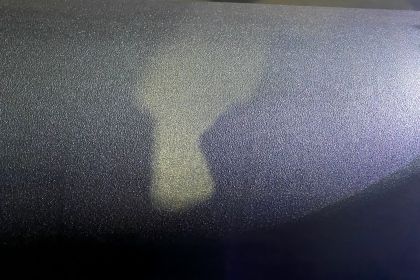

Surface contouring (anchoring texture): The impact of the abrasive creates a uniform microtexture on the steel surface. This “anchoring texture” maximizes the coating’s adhesion area, ensuring a strong adhesion for decades.
3.Our Execution: Compliant with Global Standards
When you order services from Liaocheng Bizqiao International Trade Co., Ltd. , you receive more than just sandblasting and coating. You receive a rigorously controlled process that meets ISO 8501 and SSPC (Society for Protective Coatings) standards.
Below is our step-by-step process to ensure international quality:
Step 1: Pre-inspection
Before sandblasting, we inspect the original pipe for grease, oil, or severe weld defects. Any contaminants are removed through chemical cleaning or grinding to ensure the base metal is ready for subsequent processing.
Step 2: Abrasive Selection and Equipment Setup
We select the abrasive type and air pressure based on the steel grade and the specified coating. For standard projects, our goal is Sa 2 (thorough sandblasting cleanliness). For critical conditions, such as acidic gases or high-temperature pipelines, we strictly adhere to Sa 2.5 (very thorough sandblasting cleanliness) or Sa 3 (sandblasting cleanliness to a visible degree). This results in a uniform off-white metallic surface.
Step 3: Sandblasting Operation
Our certified operators work in a controlled environment (or with on-site protective systems). We ensure 100% coverage, leaving no oxide scale.
Step 4: Dust Removal and Surface Condition Verification
Immediately after sandblasting, we use industrial vacuum cleaners and oil-free compressed air to remove all dust and debris from the surface.
Then, we verify:
Cleanliness: Visual comparison against ISO 8501-1 standards (photos Sa2, Sa2.5).
Roughness: We use replica tape or a digital surface roughness meter to measure the anchor profile depth to ensure it meets the coating manufacturer’s requirements (typically 50-100 microns).
4.What are our advantages?
We understand that overseas sourcing requires trust. Here are the reasons why global clients choose to work with us:
Strict Environmental Compliance: Our partner factories employ dust removal and control systems that comply with modern environmental regulations, ensuring our operations are sustainable and responsible.
Anti-flash rust treatment: In humid climates, exposed steel can flash rust within hours. Our precise logistics scheduling: Sandblasting and coating are carried out simultaneously, ensuring the primer is applied within the critical time window (usually within 4 hours), thus keeping the steel in a vulnerable state at all times.
International Certifications: We are ready to provide detailed inspection reports, photos, and third-party certifications.
Date: March 8, 2024
