Applications: For medium- and short-range (hundreds of meters to several kilometers) audio and video transmission, as well as drone data transmission. Suitable for surveillance, live streaming, and industrial control scenarios.
It enables medium- and short-range wireless transmission of audio, video, and industrial data for surveillance, live streaming, and other scenarios.

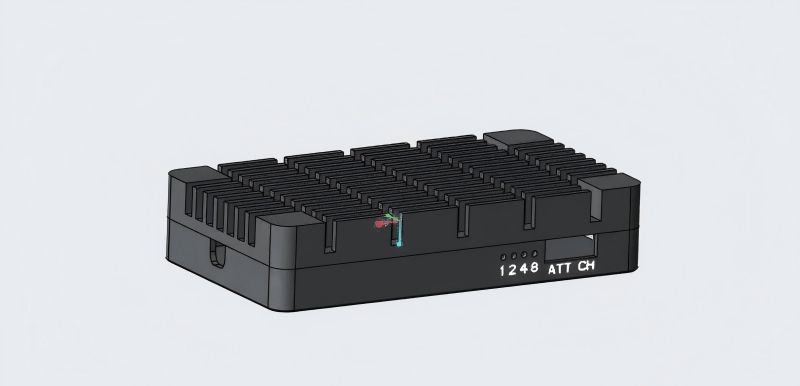

The core value of the 1.2G 10W wireless transmit and receive system is to “balance medium-range coverage, interference resistance, and real-time transmission requirements.”
It is particularly suitable for outdoor/industrial scenarios where wiring is not available and WiFi interference must be avoided. However, attention should be paid to power consumption, compliance, and the impact of obstructions on transmission distance.
| No. | Item | Indicator Description | |
| 1 | Frequency | 0 | 1040M |
| 1 | 1080M | ||
| 2 | 1120M | ||
| 3 | 1160M | ||
| 4 | 1200M | ||
| 5 | 1240M | ||
| 6 | 1280M | ||
| 7 | 1320M | ||
| 8 | 1360M | ||
| 9 | 1400M | ||
| 2 | Power | 38.5-40dBm | |
| 3 | Voltage | 7-28V | |
| 4 | Current | ≤0.8A@24V/39dBm | |
| 5 | Size | L*W*H68*38*15mm 40g (No output connector) |
|
| 6 | Output interface | MMCX | |
| 7 | Power supply interface |
PH2.0-3PWB interface (pluggable)Red (24V),black(0V),yellow(video)150MM silicone rubber cable |
|
| 8 | Display | Channel display with LED lights | |
| 9 | Distance | 10-50Km | |
| 10 | Frequency control | Indicator light phase-locked loop control, locking each frequency point |
|
